Al-Ko Octagon Shock Absorbers Red Single Axle 1800Kg Tandem 3500 Kg 601206

Shock absorbers for caravans ensuring immediate vibration dampening, improved driving and braking stability, and optimum ground contact for safe and convenient driving.

Product Information

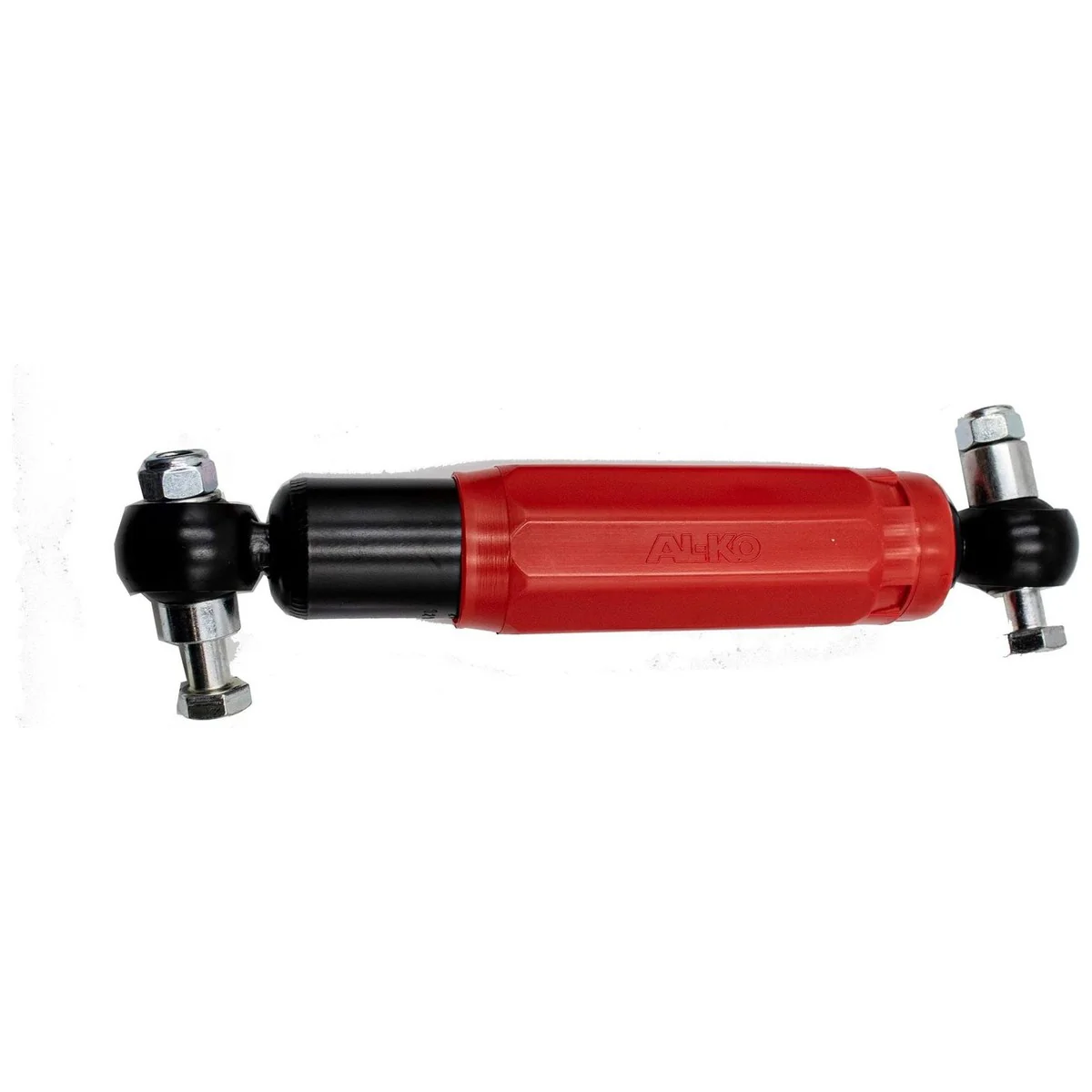

601206 - Al-Ko Octagon Shock Absorbers Red Single Axle 1800Kg Tandem 3500 Kg 601206

Inadequate shock absorption can cause dangerous trailer bouncing even on minor road imperfections. AL-KO shock absorbers prevent vibrations from developing into hazardous bouncing that could result in loss of vehicle control. The company offers shock absorbers specifically designed for particular trailer weight classes, color-coded by permissible gross weight, ensuring optimal vibration damping across their respective ranges rather than covering overly broad weight spans that compromise performance.

Key Features

• Overload protection
• Quality seals
• Chrome-plated sintered metal valve
• Piston rod with 0.1 Ra roughness
• Dust protection between inner and outer tube
• Special oil formulation
• Rubber-mounted articulation connection eyes
• Installation angle tolerance up to 5 degrees
• Quick and simple assembly with minimal tools required

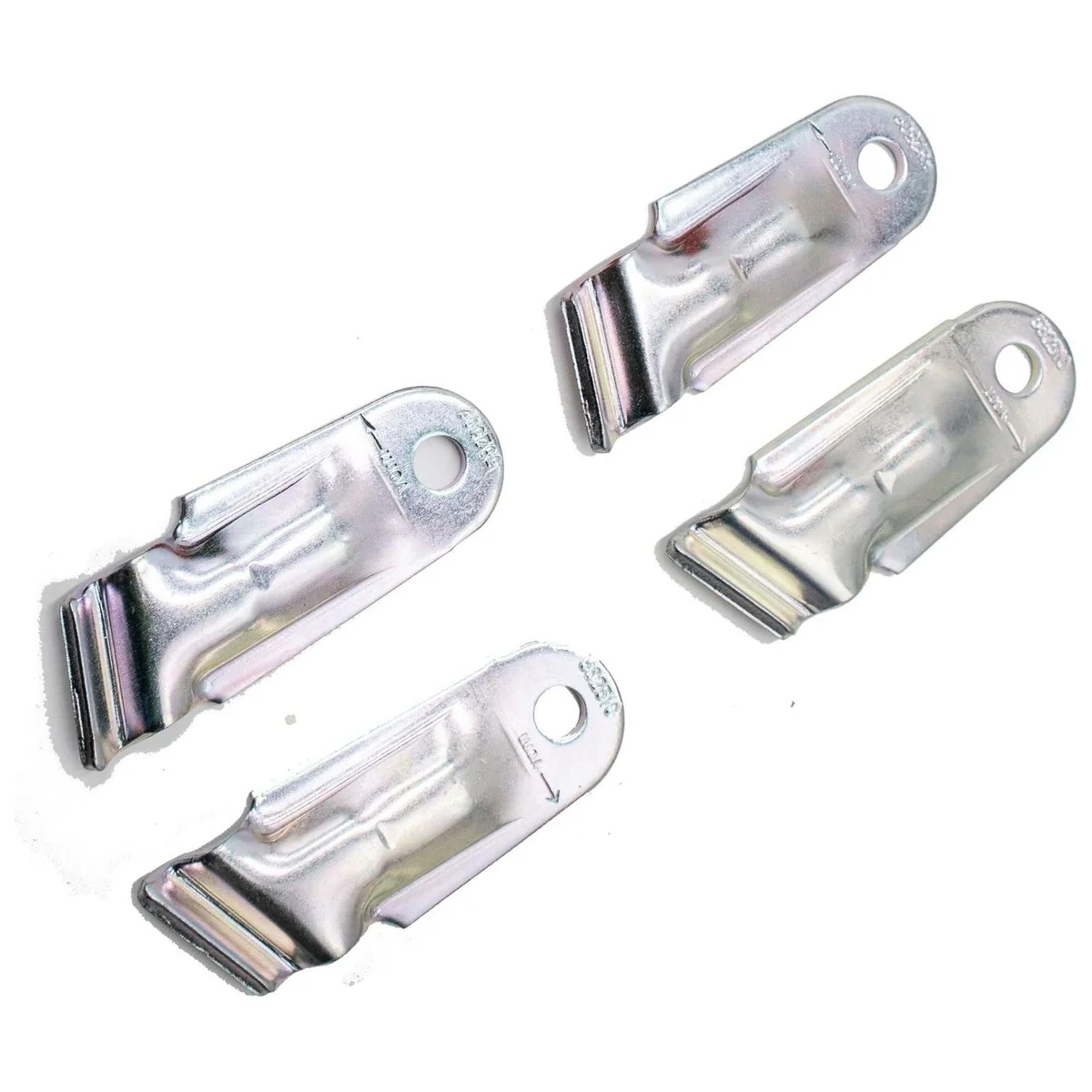

• Multiple bracket mounting options available

Specifications

• 244087 - Single-axle weight: 4000 kg, Two-axle weight: 7500 kg, Weight: 1.3 kg, Color: black
• 244085 - Single-axle weight: 1350 kg, Two-axle weight: 2700 kg, Weight: 1.3 kg, Color: blue
• 244084 - Single-axle weight: 900 kg, Two-axle weight: 1600 kg, Weight: 1.3 kg, Color: green
• 244086 - Single-axle weight: 2000 kg, Two-axle weight: 3500 kg, Weight: 1.3 kg, Color: red

What's In The Box

• Shock absorber unit
• Screws
• Nuts

Why Choose AL-KO?

AL-KO is a market leader in caravan and motorhome chassis technology, axles, stabilisers and safety systems. With decades of German engineering excellence, AL-KO components are trusted as original equipment by leading caravan and motorhome manufacturers across Europe.
